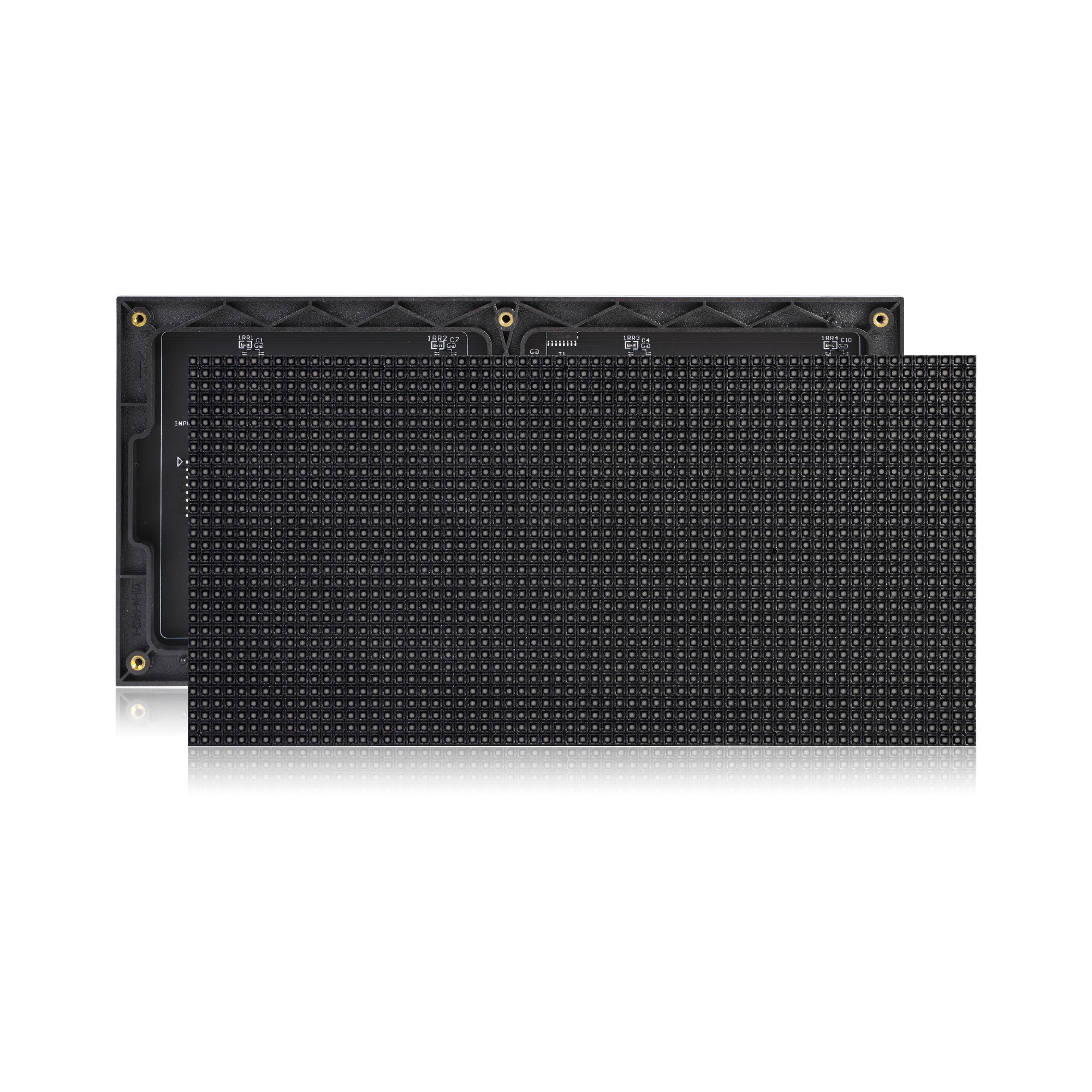

WH-C4.0

Project

Product Parameter

Module

Parameter

SMD

SMD2121

Pixel Pitch

4

Module Resolution〔W×H)

3200

Module Size (mm)

320(W)×160(H)×14(D)

Module Weight(kg)

0.41

Working Voltage

4.5V/5V

Module Power(W)

≤17

Optics

Paremeter

Screen Brightness(nits)

≥700

Color Temperature(K)

11345

Viewing Angle

140/140

Contrast Ration

203

Electrical

Parameter

Power Consumption(Max)

334

Power Consumption(Average)

234

Input Voltage

AC90~132V/ AC186~264V,frequency47-63 (Hz)

Applicable Standards

GB4913/ENG0950

Processing

Performanc

Frameshift Frequency

60Hz

Scan Mode

20Scan

Gray Level

16384

Refresh Frequency

1920

Enviornmental

Paremeter

Life Span(H)

100,000

          Working Temperature/Humidity

-20℃ -50℃ / 10%-65%RH

          Storage Temperature/Humidity

-10℃ - 30℃ / 10%-60%RH

Applicable Standards

          SJT 11141-2017.GB/T 26125-2011、GB/T 26572-2001
